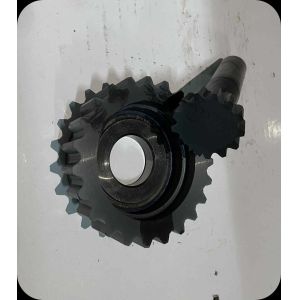

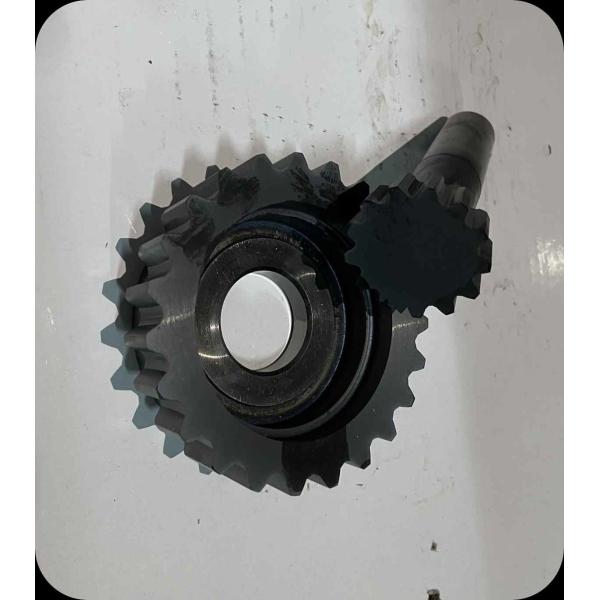

Indexable Slotting Cutter With Straight Tooth

Product Name: Taper Shank Gear Shaper
Scope of application: Mainly used for processing internal meshing spur and helical gears. It is used for processing internal meshing spur gears with a pressure angle of 20° and involute flower holes with a pressure angle of 30°. It is designed and manufactured according to JB78, GB6081-85 standards and non-standards. High efficiency, product accuracy can reach grade 6, wear resistance. Suitable for small and deep internal tooth machining.
Accuracy class: class A
Processing material: high speed steel
A gear shaper is a gear-shaped or rack-shaped gear machining tool. Gear shaper cutters are used to process internal and external meshing spur and helical cylindrical gears according to the generation method (see gear machining). The characteristic of the gear shaper is that it can process gears with shoulders, multi-stage gears and herringbone gears without empty grooves. The special-shaped gear shaper can also process workpieces with various other profiles, such as cams and internal splines.
Gear shaper knives are divided into four types: disc, bowl, cylinder and tapered shank according to their shapes. The disc shaper is mainly used for processing internal and external meshing straight teeth, gear shaper helical teeth and herringbone gears. The bowl-shaped gear shaper mainly processes spur gears with shoulders and multiple internal and external meshing. The difference between it and the disc-shaped gear shaper is that the nut used for clamping can be accommodated in the body of the gear shaper. Therefore, processing is not hindered. The cylindrical gear shaper is used to process internal gears and small external gears, and is screwed on the main shaft of the gear shaper by the thread of the inner hole. The taper shank shaper is mainly used for machining internal meshing spur and helical gears.

Our Product Series include cemented carbide turning & milling cutting tools with standard and non-standard; various kinds of wear-resisting, anti-crosion precision mould and structural parts; semifinishing and precision machining of cermet and non-cermet cutting tools.

In recent years, with decades of accumulated experience and knowledge and through unremitting efforts, we’ve developed high quality Gear Cutter Series, which including: Gear Hobs series, Shaper Cutters series, Shaving Cutter series etc.

We locate in Zhuzhou city, the land of cemented carbide in China. The company has precision production equipment from key raw materials and mixtures preparation, precision forming, atmosphere and pressure control sintering, grinding and coating, and has precision measuring instruments for international quality management standard. That is why the quality of AoHua gear cutter has even exceeded that of the original world-class brand.

AoHua Tools team will serve gear cutting tools with best quality, competitive price with best delivery for our valuable customers. We look forward to your continued interest in our gear cutting tools and wish all the best to you and your family.

Any special requests on gear cutting tools, please contact us for more detail.
